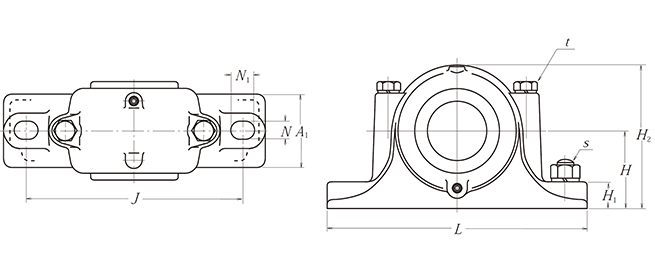

Pillow block bearing

Outer spherical insert bearings adopt an integrated housing design. The spherical outer diameter matches the concave surface of the housing to enable self-aligning performance, effectively compensating for coaxial deviation and shaft deflection of mounting surfaces and lowering installation accuracy requirements.

The bearing unit is equipped with premium high-carbon chromium steel balls and double-layer seals (NBR rubber with steel dust covers), delivering excellent protection against dust, foreign matter and grease leakage.

Pre-filled with long-service-life grease before delivery, it is maintenance-free and ready for immediate installation. Widely used in agricultural machinery, conveying equipment, textile machinery, fans and other fields, it provides reliable support with easy installation and stable operation.

Pillow block bearing

Product Parameters

Inquiry Bearing Basic Dimensions (mm) Rated Load (kN) Weight
≈kg
Model d D B C Dynamic C0 Static
✉️ SB212 60 110 53.7 47800 32800 1.17
✉️ SB211 55 100 45.3 43550 29200 0.92
✉️ SB209 45 85 41.2 31850 20800 0.56
✉️ SB210 50 90 43.5 35100 23200 0.63
✉️ SB208 40 80 34 29600 18200 0.48
✉️ SB206 30 62 30 19500 11200 0.25
✉️ SB207 35 72 32 25700 15200 0.39
✉️ SB205 25 52 27 14000 7880 0.17
✉️ SB203 17 40 22 9550 4780 0.09
✉️ SB204 20 47 0 12800 6650 0.13
✉️ SB201 12 40 22 9550 4780 0.11
✉️ SB202 15 40 22 9550 4780 0.1
✉️ SA212 60 110 33.4 47800 32800 1.26
✉️ SA211 55 100 32.5 43550 29200 1.04
✉️ SA210 50 90 30.2 35100 23200 0.7
✉️ SA208 40 80 30.2 29600 18200 0.61
✉️ SA209 45 85 30.2 31850 20800 0.66
✉️ SA207 35 72 25.4 25700 15200 0.45
✉️ SA206 30 62 23.8 19500 11200 0.3
✉️ SA204 20 47 21.5 12800 6650 0.16
